Eleva User interface for X-ray

Eleva is adaptable to the way you work and helps provide convenient and efficient patient care. By customizing and automating the imaging process, you can optimize exams for virtually every type of patient, from newborn babies up to obese adults. Enhance your departmental throughput.

All generator functionality is fully integrated into the Eleva workspot, saving you space and time. You can easily adapt exposure parameters by choosing from our pre-programed settings and applying them right from the Eleva workspot to enhance workflow efficiency.

The Eleva interface is common across our radiography portfolio. You decide when, where and how to work, be it on a CR, DR, or RF system. Enjoy the advantages of flexible clustering of different X-ray modalities. You can even start several examinations from different modalities at the same time.

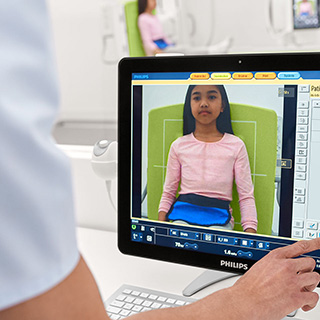

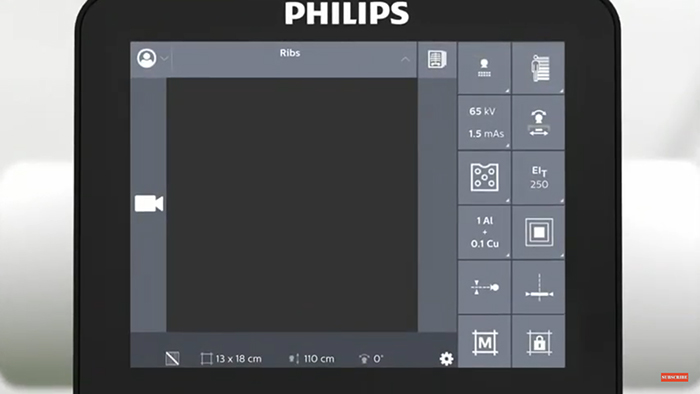

Using the Eleva workspot touchscreen it takes just three easy steps to get an image after exposure.

Step 1: Select patient
Step 2: Perform exam
Step 3: Complete exam

All images and information are integrated into your hospital networks such as RIS/PACS and archiving systems through DICOM. Intuitive use interface shortens training times.

With each Eleva release we provide integration with our latest technologies such as, SkyFlow Plus (contrast enhancement for gridless chest exams), SkyPlate wireless portable detectors, ceiling suspended geometry (optional fully motorized), Windows 10 OS, and DICOM-DVD storage. Each update expands your capabilities.

The Eleva user interface provides all the tools and controls necessary for seamless procedures. This one common platform is easy to learn and use, and is highly suitable for streamlining your radiography department. It is the same harmonized user interface found across our radiography portfolio.

• Exposure and fluoroscopy settings to regulate X-ray dose levels

• Parameters for image pre- and post-processing

• Geometry settings

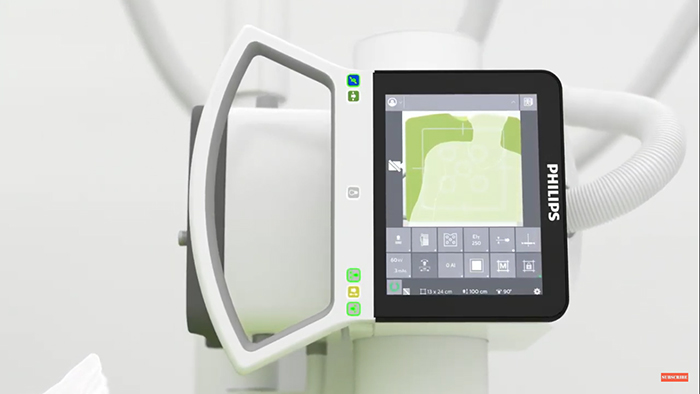

• Beam limitation

With the resultant IEC standard 62494-1 “exposure index of digital X-ray imaging systems,” which provides a unified method to generate an exposure index value, requires users to input a target exposure index (EI_T). This offers the possibility to specify the noise level that is diagnostically appropriate for an examination and indicates a deviation index (DI) value that gives feedback to the user regarding technique and image quality based on signal-to-noise ratio. These are important values in providing feedback in regard to achieving optimal images at a low dose, the EI and DI don’t directly indicate patient dose.


“Expected value of the exposure index when exposing the image receptor properly“*

“May depend on the type of detector, the type of examination, on the diagnostic question…“*

*Source: IEC 62492-1 (International Electrotechnical Commission)
